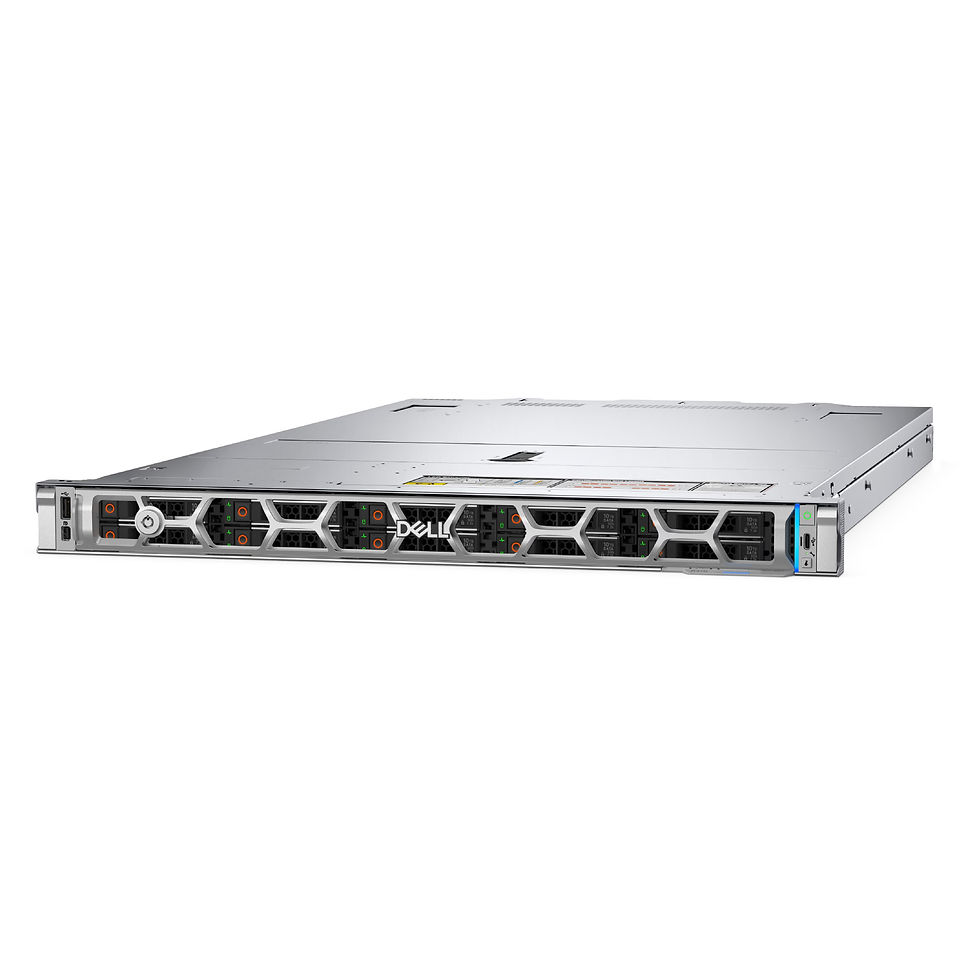

PowerEdge R470
The Dell PowerEdge 1U rack server powered by Intel® Xeon® 6 processors is engineered for next-generation performance, scalability, and efficiency. Designed for modern data centers, it supports up to 144 cores, 4 TB DDR5 memory, and high-capacity Gen5 NVMe storage, making it ideal for compute-intensive workloads, virtualization, AI/ML tasks, and enterprise cloud environments. With advanced management through iDRAC, robust security features, and flexible OCP networking options, it provides enterprise-grade reliability and adaptability for diverse IT needs.
SPECIFICATION
Category Details Processor One Intel® Xeon® 6 E-core processor (up to 144 cores) or One Intel® Xeon® 6 P-core processor (up to 86 cores, R1S option) Memory 16 DDR5 DIMM slots, up to 4 TB RDIMM (6400 MT/s)
• Xeon® 6 E-core: up to 1 TB
• Xeon® 6 P-core (R1S option): up to 4 TB (future support with 256 GB DIMMs)
• ECC DDR5 DIMMs only
Storage Controllers • Internal RAID: PERC H365i DC-MHS, PERC H965i DC-MHS
• External: HBA465e, H965e (RAID)
• Internal Boot: BOSS-N1 DC-MHS (HW RAID 1, 2x M.2 NVMe SSDs)
Drive Bays (Front) • Up to 8 × EDSFF E3.S Gen5 NVMe (122.88 TB)
• Up to 16 × EDSFF E3.S Gen5 NVMe (245.76 TB)
• Up to 8 × 2.5″ SAS/SATA/NVMe (122.88 TB)
• Up to 10 × 2.5″ SAS/SATA/NVMe (84.48 TB)
• Up to 4 × 3.5″ SAS/SATA (96 TB)
Drive Bays (Rear) Up to 2 × EDSFF E3.S Gen5 NVMe (30.72 TB) Power Supplies • 800W, 1100W, 1500W, 1800W Titanium/Platinum (100–240 VAC or 240 HVDC)
• 1500W Titanium (277 VAC, HVDC)
• 1400W Titanium -48V DC
Cooling Air cooling with up to 4 dual-fan hot swappable modules Dimensions H: 42.8 mm (1.69")
W: 482 mm (19.0")
D: 816.92 mm (32.16") with bezel
D: 815.14 mm (32.09") without bezel
D: 829.44 mm (Front I/O, no bezel)
Form Factor 1U rack server Embedded Management iDRAC, iDRAC Direct, iDRAC RESTful API (Redfish), RACADM CLI, iDRAC Service Module Security Secure Boot, Silicon Root of Trust, TPM 2.0, Cryptographically signed firmware, Chassis intrusion detection, Data at Rest Encryption, Secure Erase, System Lockdown OCP Network Options Up to 2 × OCP NIC 3.0 (front or rear, slots 2/5/31/32) Embedded NIC 1 Gb dedicated BMC Ethernet port GPU Options Up to 4 × 75 W (single width) Ports (Front) • 1 × USB 2.0 Type-C
• 1 × USB 2.0 Type-A (optional)
• 1 × Mini DisplayPort (optional)
• 1 × DB9 Serial (Front I/O config)
• 1 × Dedicated BMC Ethernet (Front I/O config)
Ports (Rear) • 1 × Dedicated BMC Ethernet
• 2 × USB 3.1 Type-A
• 1 × VGA
Internal Ports 1 × USB 3.1 Type-A PCIe Slots Up to 4 × Gen5 PCIe (x16 connectors)
• Slot 1: 1×8 Gen5 LP or 1×16 Gen5 FHHL
• Slot 4: 1×16 Gen5 FHHL
• Slot 31: 1×16 Gen5 FHHL
• Slot 32: 1×16 Gen5 FHHL
Operating Systems & Hypervisors Ubuntu Server LTS, RHEL, SUSE Linux Enterprise Server, VMware ESXi, Windows Server (Standard/Datacenter)
