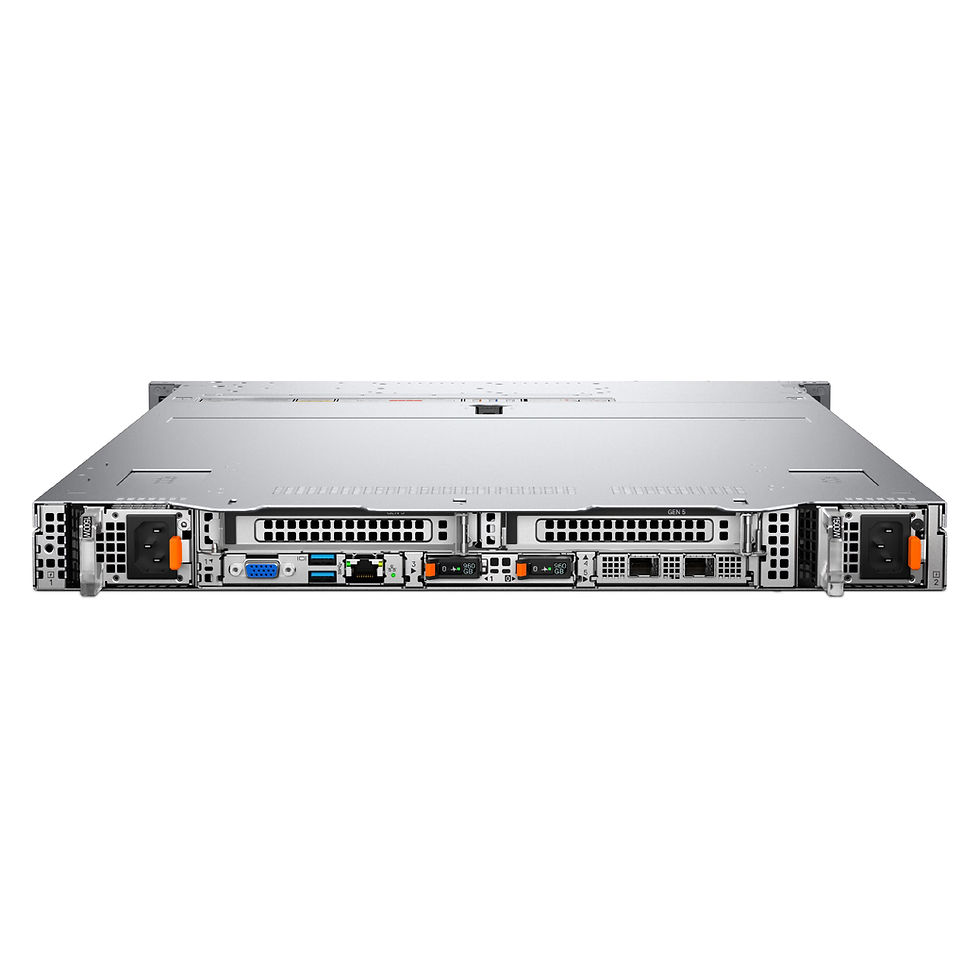

PowerEdge R670
The Dell PowerEdge 1U dual Intel Xeon server is a high-performance 1U rack server designed for enterprise workloads, virtualization, and compute-intensive applications. It supports up to two Intel Xeon 6 processors with high core counts, extensive DDR5 memory, multiple storage configurations including EDSFF NVMe, flexible GPU options, and advanced embedded management via iDRAC. Both air and direct liquid cooling (DLC) options are available.
SPECIFICATION
Component Specification / Options Processor 2 x Intel Xeon 6 Processors, up to 144 E-cores or 86 P-cores per processor Memory 32 DDR5 DIMM slots, RDIMM, up to 8 TB max, speeds up to 6400 MT/s, registered ECC only Storage Controllers Internal Boot: BOSS-N1 DC-MHS: HWRAID 1, 2 x M.2 NVMe SSDs or M.2 Interposer board, USB
Internal RAID Controllers: Front PERC H965i, H975i, H365i
Drive Bays Front: No backplane
• 8 x EDSFF E3.S NVMe max 122.88 TB (FIO)
• 16 x EDSFF E3.S Gen5 NVMe max 245.76 TB
• 20 x EDSFF E3.S Gen5 NVMe max 307.2 TB
• 8 x 2.5" SAS/SATA/NVMe Direct/NVMe RAID max 122.88 TB
• 8 x 2.5" Universal max 245.6 TB
• 10 x 2.5" SAS/SATA max 38.4 TB
Rear: 2 x EDSFF E3.S Gen5 NVMe max 30.72 TB
Power Supplies (Hot Swap) 1500 W Titanium 100–240 VAC/VDC, 1100 W Titanium 100–240 VAC/VDC, 800 W Titanium 100–240 VAC/VDC, 1100 W Platinum 100–240 VAC/VDC, 800 W Platinum 100–240 VAC/VDC, 1800 W HLAC Titanium 200–240 VAC/VDC*, 1500 W 277 VAC/336 VDC*, 1400 W LVDC -48–60 VDC* Cooling Options Air cooling, Direct Liquid Cooling (requires rack manifolds and CDU) Fans Up to 4 sets (dual fan module), hot swappable, HPR Silver or Standard Dimensions Height: 42.8 mm (1.69 in)
Width: 482 mm (18.98 in)
Depth (rear I/O): 816.92 mm (32.20 in) with bezel / 815.14 mm (32.09 in) without bezel
Depth (front I/O): 829.44 mm (32.66 in) without bezel
Weight 20.42 kg (45.02 lbs) Form Factor 1U rack server Embedded Management iDRAC, iDRAC Direct, iDRAC RESTful API with Redfish, RACADM CLI, iDRAC Service Module, Quick Sync 2, NativeEdge Endpoint, NativeEdge Orchestrator Bezel Optional security bezel Security Cryptographically signed firmware, Data at Rest Encryption (SEDs), Secure Boot, Secured Component Verification, Secure Erase, Silicon Root of Trust, System Lockdown, TPM 2.0 FIPS, Chassis Intrusion Detection Network Options Up to 4 x OCP NIC 3.0 optional cards; supports 1GbE, 10GbE, 25GbE, 100GbE, 400GbE
PCIe/OCP Slots: Front riser Slot 31 & 32: 1 x16 OCP 3.0
Slot 2: 1 x16 OCP 3.0
Slot 5: 1 x8 Gen5 or 1 x16 Gen5 OCP 3.0
BOSS Slots 3 & 34: 1 x4 BOSS
GPU Options Up to 3 x 75 W single-width GPUs Ports Front: 1 x USB 2.0 Type-C, 1 x USB 2.0 Type-A (optional), 1 x Mini DisplayPort (optional), 1 x DB9 Serial (front I/O), 1 x dedicated iDRAC Ethernet
Rear: 1 x dedicated iDRAC Ethernet, 1 x VGA, 2 x USB 3.1 Type-A Internal: 1 x USB 3.1 Type-A
PCIe Slots Up to 2 x 16 Gen5 PCIe
Slots 31–32: 1 x16 Full Height – Half/Full Length or 1 x16 OCP 3.0 (front riser)
Slot 1–4: Flexible 3 x16 or 2 x8 Gen5 slots
Operating Systems / Hypervisors Canonical Ubuntu Server LTS, Windows Server with Hyper-V (P-Core only), Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
