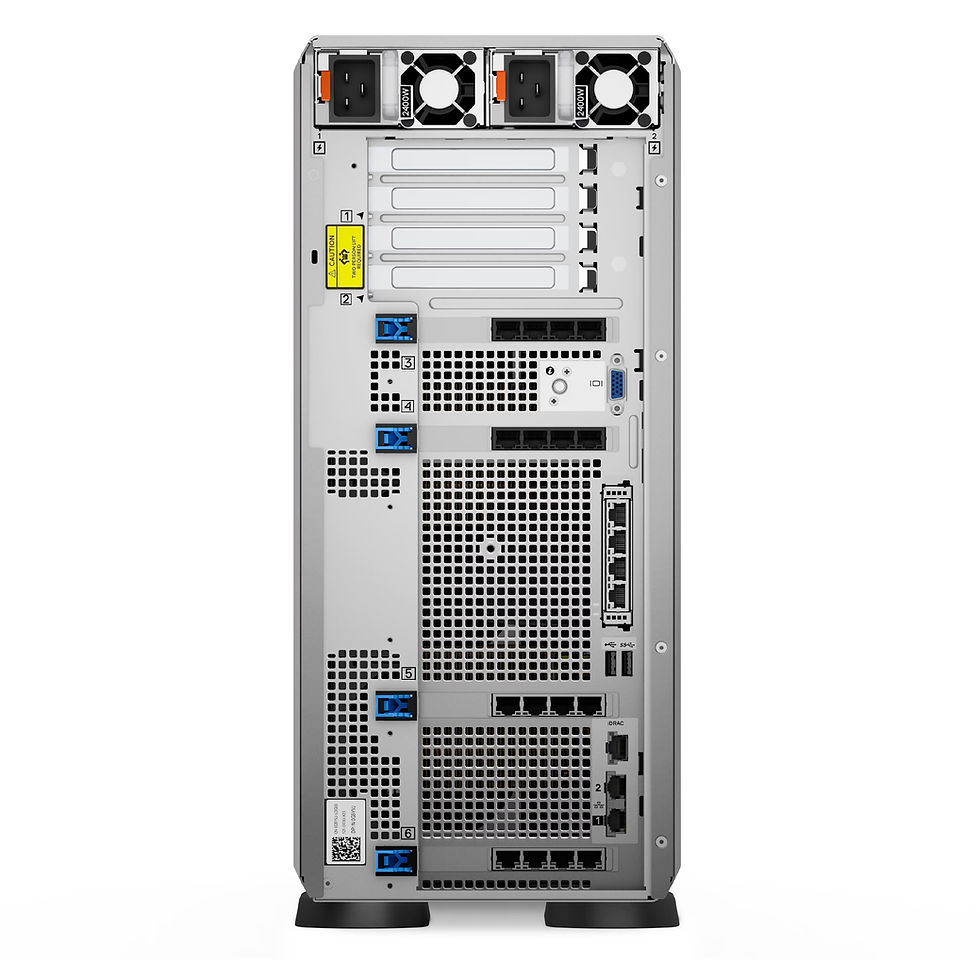

PowerEdge T560

PowerEdge T560

SKU: T560
฿0.00Price
The PowerEdge T560 delivers enterprise performance in a tower form factor, with next-gen Intel Xeon CPUs, DDR5 memory, massive storage scalability up to 360 TB, and robust management/security features, making it a powerhouse for virtualization, databases, and business-critical apps outside of traditional racks.
Quantity
15-30 Days

  • SPECIFICATION

    Category Specification
    Processor

    Up to 2 × 4th Gen Intel® Xeon Scalable (max 32 cores per CPU)

    Up to 2 × 5th Gen Intel® Xeon Scalable (max 28 cores per CPU)
    Memory

    16 × DDR5 DIMM slots

    Up to 1.5 TB (RDIMM)

    Up to 4800 MT/s (4th Gen)

    Up to 5200 MT/s (5th Gen)

    ECC registered DDR5 only
    Storage Controllers

    Internal PERC: H965i, H755N, H755, H355, HBA355i, HBA465i

    Boot: BOSS-N1 (2 × M.2 NVMe SSDs) or USB

    External: PERC HBA355e

    Software RAID: S160 (NVMe only)
    Drive Bays (Front)

    - 12 × 3.5" SAS/SATA (max 180 TB)

    - 8 × 3.5" SAS/SATA (max 120 TB)

    - 8 × 3.5" SAS/SATA + 8 × 2.5" NVMe (max 240 TB)

    - 8 × 2.5" SAS/SATA (max 120 TB)

    - 16 × 2.5" SAS/SATA (max 240 TB)

    - 24 × 2.5" SAS/SATA (max 360 TB)
    Power Supplies 600W–2800W (Platinum/Titanium, AC or DC options) Hot-plug redundant support
    Cooling Air cooling Up to 8 × standard or high-performance fans
    Expansion Slots (PCIe)

    Up to 6 PCIe slots

    Slot 1: x16 Gen5 FHFL

    Slot 2: x16 Gen5 FHFL

    Slot 3: x16 Gen4 FHHL

    Slot 4: x16 Gen4 FHHL

    Slot 5: x16 (x8 lanes) Gen4 FHHL

    Slot 6: x16 Gen4 FHHL
    GPU Options Up to 2 × 300W double-width or 6 × 75W single-width GPUs
    Networking 2 × 1GbE LOM 1 × OCP 3.0 card slot (x8) (LOM + OCP can be installed simultaneously)
    Management iDRAC9, iDRAC Direct, iDRAC Service Module, RESTful API with Redfish Quick Sync 2 wireless module
    OpenManage Software OpenManage Enterprise Plugins: Power Manager, Service, Update Manager CloudIQ, VMware vCenter integration, MS System Center, Windows Admin Center
    Security Silicon Root of Trust TPM 2.0 (FIPS/CC/China NationZ) Secure Boot, Secure Erase, System Lockdown SED (Self-Encrypting Drives) support
    Ports (Front) 1 × USB 2.0, 1 × USB 3.0, 1 × iDRAC Direct (Micro-AB USB)
    Ports (Rear) 1 × USB 2.0, 1 × USB 3.0, 1 × Serial (optional), 1 × iDRAC RJ45, 1 × VGA, 2 × Ethernet
    Internal Ports 1 × USB 3.0 (optional)
    Form Factor 4.5U tower
    Dimensions

    Height: 464 mm (18.26 in, with feet)

    508.8 mm (20.03 in, with wheels)

    446 mm (17.60 in, without feet)

    Width: 200 mm (7.87 in)

    Depth: 678.2 mm (26.70 in, with bezel)
    Operating Systems

    Canonical Ubuntu Server LTS

    Microsoft Windows Server with Hyper-V

    Red Hat Enterprise Linux (RHEL)

    SUSE Linux Enterprise Server (SLES)

    VMware ESXi
