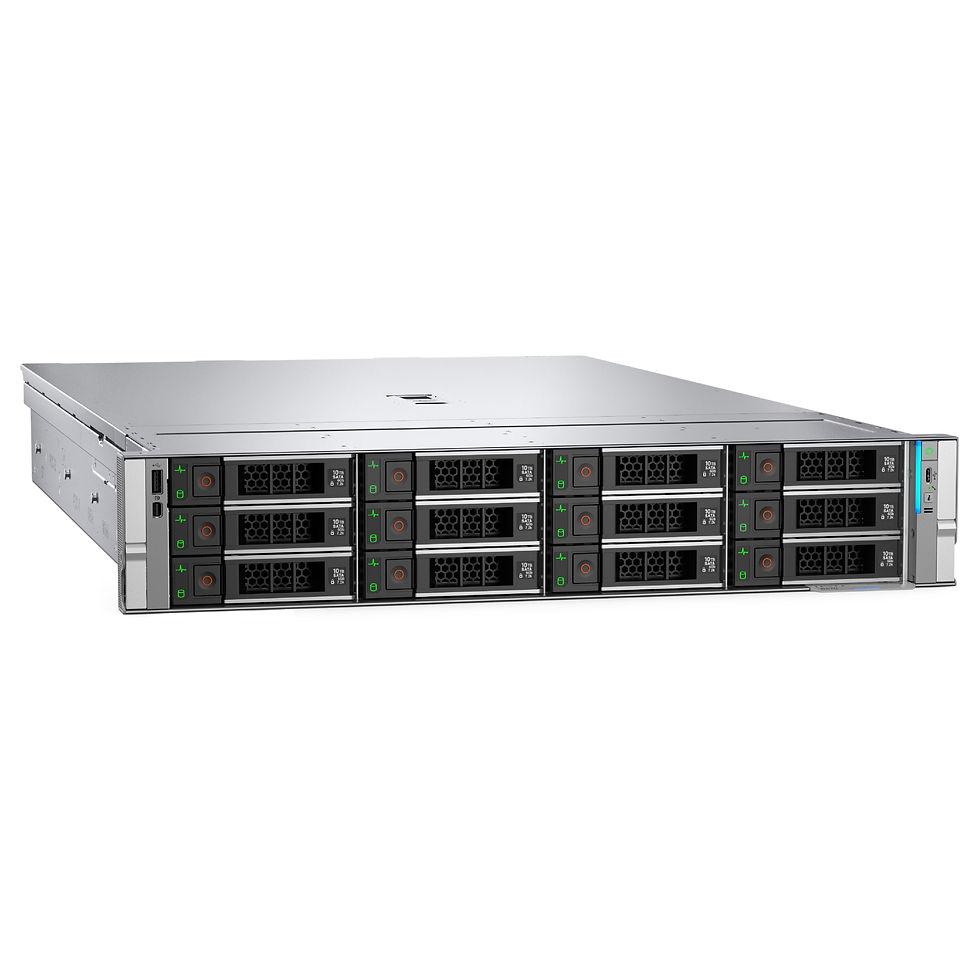

PowerEdge R570

SKU: R570
฿0.00ราคา
The Dell PowerEdge Rack Server is engineered for next-generation data center performance, offering a balance of scalability, efficiency, and security. Designed for demanding enterprise workloads, this 2U server supports both Intel® Xeon® 6 E-core and P-core processors, enabling flexibility for diverse computing needs.
จำนวน
15-30 Days

  • SPECIFICATION

    Feature Technical Specifications
    Processor

    • 1 × Intel® Xeon® 6 E-core CPU (up to 144 cores)

    • 1 × Intel® Xeon® 6 P-core CPU (up to 86 cores with R1S option)
    Memory

    • 16 DDR5 DIMM slots, up to 6400 MT/s

    • E-core CPU: RDIMM up to 1 TB

    • P-core CPU (R1S): RDIMM up to 4 TB

    • Supports registered ECC DDR5 DIMMs only
    Storage Controllers

    • Internal (RAID): PERC H365i DC-MHS, PERC H965i DC-MH, H365i Adapter, H965i Adapter

    • Internal Boot: BOSS-N1 DC-MHS, M.2 interposer (up to 2 × M.2 NVMe SSDs), USB

    • External: PERC H965e, HBA 465e
    Drive Bays (Front)

    • Up to 12 × 3.5″ SAS/SATA HDD, max 288 TB

    • Up to 8 × 2.5″ NVMe, max 122.88 TB

    • Up to 8 × 2.5″ SAS/SATA, max 30.72–122.88 TB

    • Up to 16 × 2.5″ SAS/SATA RAID, max 61.44 TB

    • Up to 24 × 2.5″ SAS4/SATA, max 92.16 TB

    • Up to 8–32 × EDSFF E3.S Gen5 NVMe (hot/cold aisle), max 491.52 TB
    Drive Bays (Rear) • Up to 4 × EDSFF E3.S Gen5 NVMe, max 61.44 TB
    Power Supplies

    • 800 W Platinum/Titanium

    • 1100 W Platinum/Titanium

    • 1500 W Titanium (100–240 VAC or 277 VAC)

    • 1400 W -48 VDC

    • 1800 W Titanium
    Cooling Air cooling
    Fans Up to 6 × hot-plug fans
    Dimensions Height: 86.8 mm (3.42 in.)Width: 482 mm (18.98 in.)Depth: 801.5–814.5 mm (~31.55–32.06 in.)
    Form Factor 2U Rack Server
    Embedded Management iDRAC, iDRAC Direct, iDRAC RESTful API (Redfish), RACADM CLI, iDRAC Service Module (iSM)
    Bezel Optional security bezel
    Security

    • Cryptographically signed firmware

    • Data at Rest Encryption (SEDs)

    • Secure Boot

    • Secured Component Verification

    • Secure Erase

    • Silicon Root of Trust

    • System Lockdown

    • TPM 2.0 (FIPS, CC-TCG certified)

    • Chassis Intrusion Detection
    GPU Options Up to 3 × 400W DW GPUs or up to 4 × 75W SW GPUs
    Ports (Front)

    • 1 × USB 2.0 Type-C (HOST/BMC Direct)

    • 1 × USB 2.0 Type-A (opt. LCP – KVM)

    • 1 × Mini DisplayPort (opt. LCP – KVM)

    • 1 × DB9 Serial (with front I/O)

    • 1 × BMC Ethernet port (with front I/O)
    Ports (Rear)

    • 1 × BMC Ethernet port

    • 2 × USB 3.1 Type-A

    • 1 × VGA
    Internal Port • 1 × USB 3.1 Type-A
    PCIe Slots Up to 6 × PCIe Gen5 slots (various configurations: x16 full/half height, OCP3.0, Boss options)
    OCP Network Up to 2 × OCP NIC 3.0 (front or rear, optional)
    Embedded NIC 1 Gb dedicated BMC Ethernet port
    Operating Systems & Hypervisors

    • Ubuntu Server LTS

    • Microsoft Windows Server with Hyper-V

    • RedHat Enterprise Linux

    • SUSE Linux Enterprise Server

    • VMware ESXi
