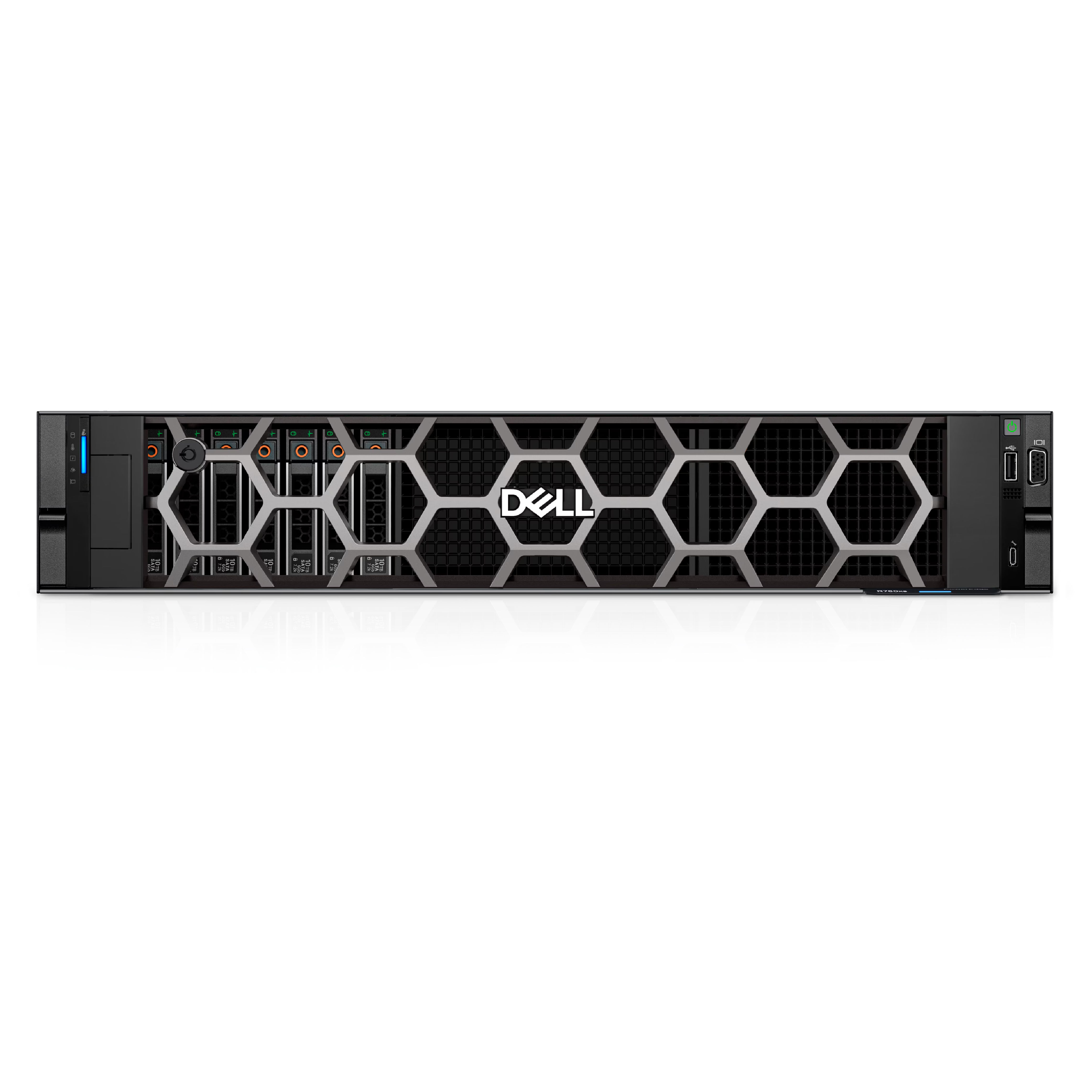

PowerEdge R760xs
The Dell PowerEdge R760xs is a 2U rack server built for high-performance computing, virtualization, and storage-intensive workloads. It combines the latest Intel Xeon Scalable processors with DDR5 memory, flexible storage options, and enterprise-class manageability to deliver efficiency, reliability, and scalability.
SPECIFICATION
Component Details Processors Up to 2 x 5th Gen Intel Xeon Scalable (up to 28 cores) or 4th Gen Intel Xeon Scalable (up to 32 cores) Memory 16 DDR5 DIMM slots, up to 1.5 TB RDIMM, speeds up to 5200 MT/s, ECC registered Storage Controllers Internal: PERC H965i, H755, H755N, H355, HBA355i, HBA465i
Internal Boot: BOSS-N1 (2 x M.2 NVMe SSDs or USB)
External HBA: HBA355e (non-RAID)
Software RAID: S160
Drive Bays Front: Up to 12 x 3.5" SAS/SATA (max 288 TB)
Front: Up to 16 x 2.5" SAS/SATA (max 121.6 TB) or mixed 16+8 (244.48 TB)
Rear: Up to 2 x 2.5" SAS/SATA/NVMe (30.72 TB, only with 12 x 3.5" config)
GPU Options Up to 2 x 75 W SW, Low Profile Power Supplies 600 W – 1800 W Titanium/Platinum, hot-swap redundant Cooling Air cooling; up to 6 hot-swappable fans (STD / HPR Silver / HPR Gold) Dimensions Height: 86.8 mm (3.41"), Width: 482 mm (18.97"), Depth: 707.78 mm (without bezel), 721.62 mm (with bezel) Weight Max 28.6 kg (63 lbs) Form Factor 2U rack server Embedded Management iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module, Quick Sync 2 wireless Bezel Optional LCD bezel or security bezel OpenManage Software CloudIQ, OpenManage Enterprise, Integration for VMware vCenter, Microsoft System Center, Windows Admin Center, Power Manager, Service & Update Manager plugins Mobility OpenManage Mobile Integrations BMC Truesight, Microsoft System Center, ServiceNow, Red Hat Ansible, Terraform, VMware vCenter & vRealize Security Cryptographically signed firmware, Data at Rest Encryption, Secure Boot, Secure Erase, Component Verification, Silicon Root of Trust, System Lockdown, TPM 2.0 FIPS/CC-TCG/China NationZ Embedded NIC 2 x 1 GbE LOM Network Options 1 x OCP 3.0 card (optional) Ports Front: iDRAC Direct (Micro-AB USB), USB 2.0, VGA
Internal: USB 3.0 (optional)
Rear: Dedicated iDRAC Ethernet, USB 2.0, USB 3.0, VGA, Serial (optional)
PCIe Slots 1 CPU: up to 4 (2 x8 Gen5, 1 x16 Gen4, 1 x8 Gen4)
2 CPU: up to 6 (2 x16 Gen5, 3 x16 Gen4, 1 x8 Gen4)
Operating Systems Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise, VMware ESXi, Ubuntu Server LTS
